Scoping Rules and Travel Modes

In the real world, many facts and rules affecting entities have only a partial application, meaning they don't apply everywhere, or they don't apply at all times, or to everyone, or to all sets of external conditions. For example, access restrictions on a road segment might not apply to all people or all kinds of vehicles, or they might vary according to the day of the week.

The Overture schema uses two related concepts to capture the partial application of facts and rules: scoped values and rule-based properties.

Scoped values and scoping properties​

A scoped value is a value which only applies within a limited scope. Most scoped values are rules in the rule lists of rule-based properties. However, scoped values also exist outside of rule-based properties. For example, a destinations property belonging to a road segment might be geometrically scoped to its position along the road.

The scope in which a scoped value applies is controlled by one or more special child properties of the value known as scoping properties.

Geometric scoping (linear referencing)​

The geometric scoping properties at and between limit the scope of their parent value to a position or range of positions, respectively, along a segment's geometry. When the parent value is a rule object, the rule only matches the position or range of positions specified in the at or between property.

The value of the at property is a single real number a where 0 ≤ a ≤ 1. It represents a discrete position along the segment's geometry. The value of the between property is a pair of numbers [a, b] where 0 ≤ a < b ≤ 1. It represents a range of positions along the segment's geometry. The numbers a and b are interpreted as percentage displacements along the parent segment's geometry starting from the start of the segment. (The terms "start" and "end" are explained in segments and connectors.)

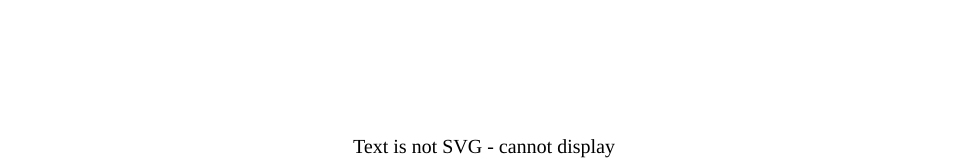

So, for example, the scoping property "at": 0.15 scopes its parent value to the position on the segment that is displaced 15% of the segment length from the start.

Diagram showing a single geometrically-scoped positionDiagram showing a single geometrically-scoped position

The position along the segment geometry described by "at": 0.15.

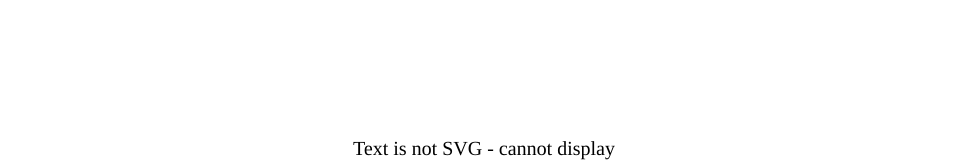

The scoping property "between": [0.35, 0.75] scopes its parent value to the range of positions on the segment beginning at 35% and extending to 75% of the segment length from the start.

Diagram showing a geometrically-scoped rangeDiagram showing a geometrically-scoped range

The range on the segment geometry described by "between": [0.35, 0.75].

For details on how linear references are calculated, see the linear referencing guide.

Temporal scoping (opening hours)​

The temporal, or time-based, scoping construct when: { during: "..." } limits the scope of its parent value to one or more recurring time ranges. When the parent value is a rule object, the rule only matches the time range or time ranges specified in the during property.

The during property must contain a string expressed in the OpenStreetMap opening hours specification.

Subjective scoping​

Subjective scoping means that the scope of a property can be constrained based on subjective factors like who or what is travelling on the transportation network, or how they are doing it.

The Overture transportation schema supports several subjective factors:

Travel-mode scoping​

A travel mode is a way of moving about the transportation network, for example driving in a motor vehicle, or, more specifically, driving in a high-occupancy vehicle.

The property construct when: { mode: [...] } limits the scope of its parent value to apply only to people or things travelling using the listed travel modes. See travel modes below for more detail.

Heading​

Heading scoping limits the scope of a parent value to apply only when the traveller is proceeding along the segment geometry in the named direction, either forward or backward. (The directions forward and backward are defined in segments and connectors.)

The property construct when: { heading: forward|backward } applies heading scoping to a parent value.

Purpose of use scoping​

Usage purpose scoping limits the scope of a parent value to apply only when the user is using the feature for one of the listed purposes. This type of scoping is common when it matters that a person is in the process of doing something like making a delivery or acting as the customer of a business.

The property construct when: { using: [...] } applies usage purpose scoping to a parent value.

Status scoping (membership in a recognized group)​

Status scoping limits the scope of a parent value to apply only when the user has a certain recognized status or is a member of a recognized group. This type of scoping is useful when it matters whether a person or thing has a recognized characteristic, such as holding a permit or being an employee of a business or student at an academic institution.

The property construct when: { recognized: [...] } applies status scoping to a parent value.

Vehicle attributes scoping​

Vehicle attribute scoping limits the scope of a parent value to apply only when the vehicle in use meets certain criteria.

The property construct when: { vehicle: [{ dimension: ..., comparison: ..., value: ... }] } applies vehicle attributes scoping to a parent value.

Note that vehicle attribute scoping can overlap to some degree with travel mode scoping. For example, some access rules may be scoped to the travel mode "heavy goods vehicle", while another equivalent access rule could be scoped to the vehicle attribute "gross vehicle weight."

Rules and rule-based properties​

A rule-based property is a property whose value in a given situation is determined by evaluating a list of rules against the facts applicable to that situation. Each individual rule in the list of rules is itself a scoped value, and the assessment of which rule applies to a given set of facts is done by the rule evaluation algorithm.

Absolute form​

There are cases when specifying a property value using rules makes sense, and cases where doing so is unnecessarily complicated because the real-world entity being modeled has a single unchanging state which is the same in all fact situations. In these cases, most rule-based properties support a simpler absolute form without a list of rules.

Rule evaluation algorithm​

Given a rule-based property, the actual value of the property in a given fact pattern is determined by a three-step process: first, all matching rules are identified; second, the single determining rule is chosen if possible; lastly, if there is no applicable rule, an appropriate default value may be assumed.

  1. Matching rules. For a given rule and a given set of facts, the rule matches the facts if the scope of the rule contains all the facts, i.e. the facts fit within all of the scoping properties expressed in the rule. The matching criteria for a rule can be thought of as the logical AND of all the scoping properties expressed in the rule.
  2. Determining rule. For a given rule-based property and a given set of facts, at most one rule can determine the property value. If only one rule matches, that rule determines the property value. If more than one rule matches, the last matching rule in the list determines the value. (This is similar to how OpenStreetMap conditional restrictions are evaluated.) Therefore it is important to write more general rules before more specific ones in a rule list.
  3. Fallback to default. If there are no matching rules, an appropriate default value may apply, depending on the property being evaluated.

Travel modes​

In the real world, a travel mode can be thought of intuitively as a way of getting from point A to point B. Travel modes can include non-vehicle modes (foot), vehicle modes (a bicycle or motor vehicle), and occasionally more granular details, e.g. a motor vehicle classified as a high occupancy vehicle or a heavy goods vehicle.

Within the Overture transportation theme schema model, a travel mode is a recognized mode by which a person or thing may use a segment feature.

Implied travel modes​

Every segment has an implied set of travel modes that are allowed to use the segment. For road segments, this implied set derives from the road class, as well as local rules, norms, and customs operative where the road segment is situated.

Since this implied set depends on locality or jurisdiction, and is susceptible of varying over time, the Overture transportation schema does not try to specify the implied set. Resolution of the implied set is done by the specific application in the case where this level of detail is important for its proper functioning. An accurate routing engine may need this information, whereas a 2D map render or a geocoder likely do not.

General definitions​

Overture's recognized travel modes are defined in general terms that are broadly applicable. For example, hov is a high-occupancy vehicle and hgv is a heavy goods vehicle. In most jurisdictions, these general terms map to a concept that is in use within the jurisdiction, even though the local name for the concept may vary.

Despite being broadly applicable, travel modes may have different definitions in different places and at different times:

  • in one jurisdiction, an hgv might mean any vehicle with a gross vehicle weight in excess of 3.5 tonnes (3,500 kg). In another place, an hgv might have a gross vehicle weight of at least 10,001 lbs.
  • in one jurisdiction, an hov might require a minimum of 2 passengers while in another place it might have a higher minimum passenger count, or include battery-electric vehicles, or exclude certain classes of vehicle or usage.

As a consequence of the variance in definition across place and time, Overture gives only general definitions for travel modes, leaving precise definition to those applications that require them.

Travel mode scoping in the schema​

The mode scoping property​

The scoping property mode controls whether a given scoped property applies when a given travel mode is being used for traveling along a road segment.

If mode is provided, it must be a non-empty array of string values identifying travel modes, and is interpreted as a set. Values must be unique, but order is not important.

Vehicle attribute scoping: vehicle​

Because travel modes are a fuzzy concept, there are inevitably areas of overlap with the more precise, but more limited, vehicle scoping property which is used for vehicle attributes scoping. Where there is potential overlap, the method of scoping used in Overture data releases will depend on how the upstream data source has expressed the equivalent concept. Where there is choice, it is preferable to select the scoping method that most accurately reflects the intention expressed on local signage.

Similar scoping properties: using and recognized​

The scoping properties using and recognized express concepts that are meant to be orthogonal to (completely separate from) travel modes:

  • The using property indicates purpose of use scoping, which relates to the purpose for which the person or thing travelling is using a given segment of the transportation network. Travel modes should ideally not embed a purpose of use.
  • The recognized property indicates status scoping, which relates to a recognized status given to the person or thing traveling, where the recognized status is distinct from the mode of travel itself. Travel modes should ideally not embed a status.

The travel modes taxonomy​

Travel modes in Overture form a shallow taxonomy. Some travel modes are more general, while others are more specific, and a more general travel mode may contain a more specific one. For example, the general travel mode vehicle contains the more specific mode motor_vehicle.

Overture travel modes taxonomyOverture travel modes taxonomy

The Overture travel modes taxonomy.

As many of the above travel modes draw on the body of knowledge accumulated in relation to OpenStreetMap transport mode access restrictions, Overture Maps would like acknowledge an intellectual debt to the OSM community in relation to travel modes as well as to other aspects of the transportation schema.
